Ultracapacitor Dischargers


Product family of 1000W nominal, 1200W maximum dissipation ultracapacitor module dischargers covering the range of 20VDC to 160VDC.  Discharge is accomplished

 by MOSFET controlled resistor banks and one DC

   contactor initiated resistor.  The unit is portable allowing in-house or field use discharging of capacitor systems.  Designed to provide a safe and efficient way for

discharging of ultracapacitor storage systems.


  Product Specification

AC Input, Single Phase, 50-60 Hz

100 – 240 VAC

Power Dissipation - Nominal

1000 W

Power Dissipation - Maximum

1200 W

DC Circuit Breaker Rating

50 A

Safety / Protection

   Over-Voltage, Over-Temperature, Reverse-Voltage

Over-Voltage

                                Greater than 10% rated Voltage

Operating Temperature

-20 to 50 °C

Storage Temperature

-25 to 85 °C

Cooling

                                                     Forced Convection

Weight

40 lbs

Size

                                           12” H x 11” W x 17.5” L



   Product Family



     Part Number

              Voltage (V)

(Note 1)

Discharge Current

(AMAX)

~ Discharge Time

(Sec/F) (Note 2)

  IPA-UCD02030

20

30

1

  IPA-UCD04830

48

30

3

  IPA-UCD06025

60

25

5

  IPA-UCD08020

80

20

9

  IPA-UCD10016

100

16

13

  IPA-UCD12513

125

13

19

  IPA-UCD16010

160

10

32

  IPA-UCD25010

250

10

82

Notes:

    1.    Discharge rate based on rated voltage to 1 volt, time is approximate.

    2.    Higher voltage options available upon request.



© 2013 Innovation Plus Power Systems USA Inc. All Rights Reserved

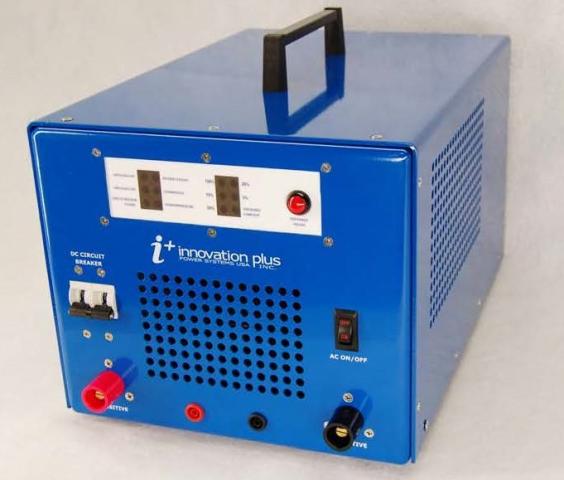

20-160 Volt Range











10 30 Amp

Discharge Current











LED Discharge Status

Indicators











Reverse Voltage,


 Over-Voltage,


 Over-Temperature


Protection









Discharge On-Off

Button
